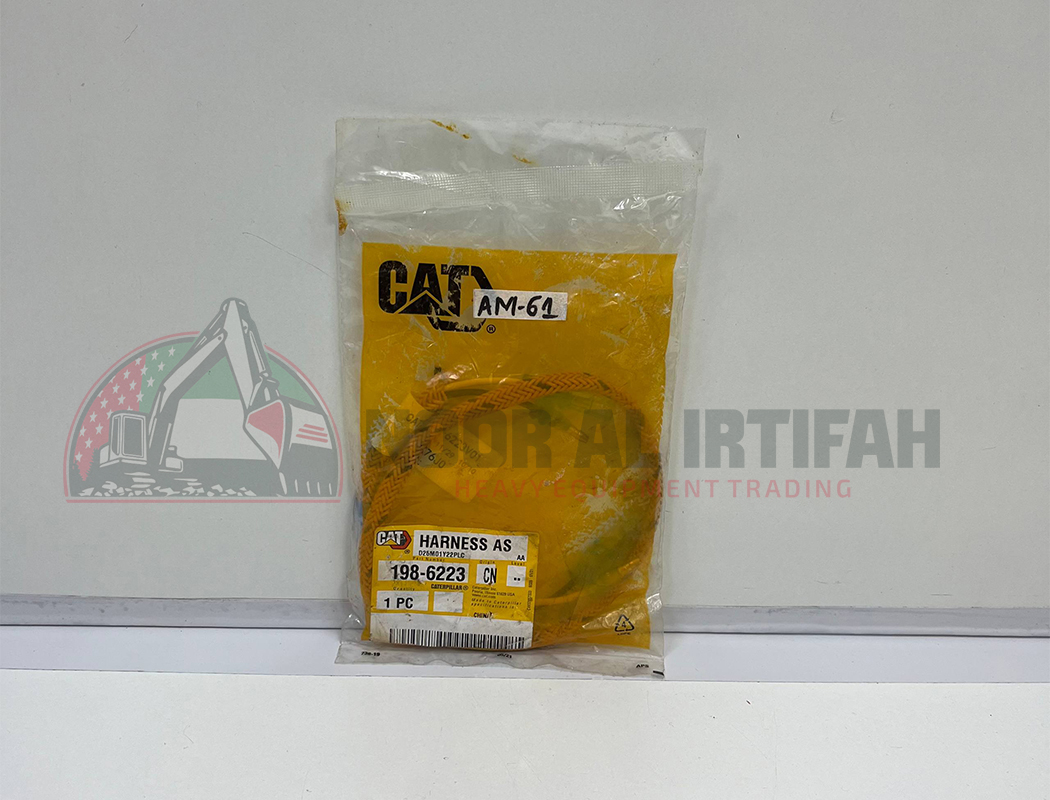

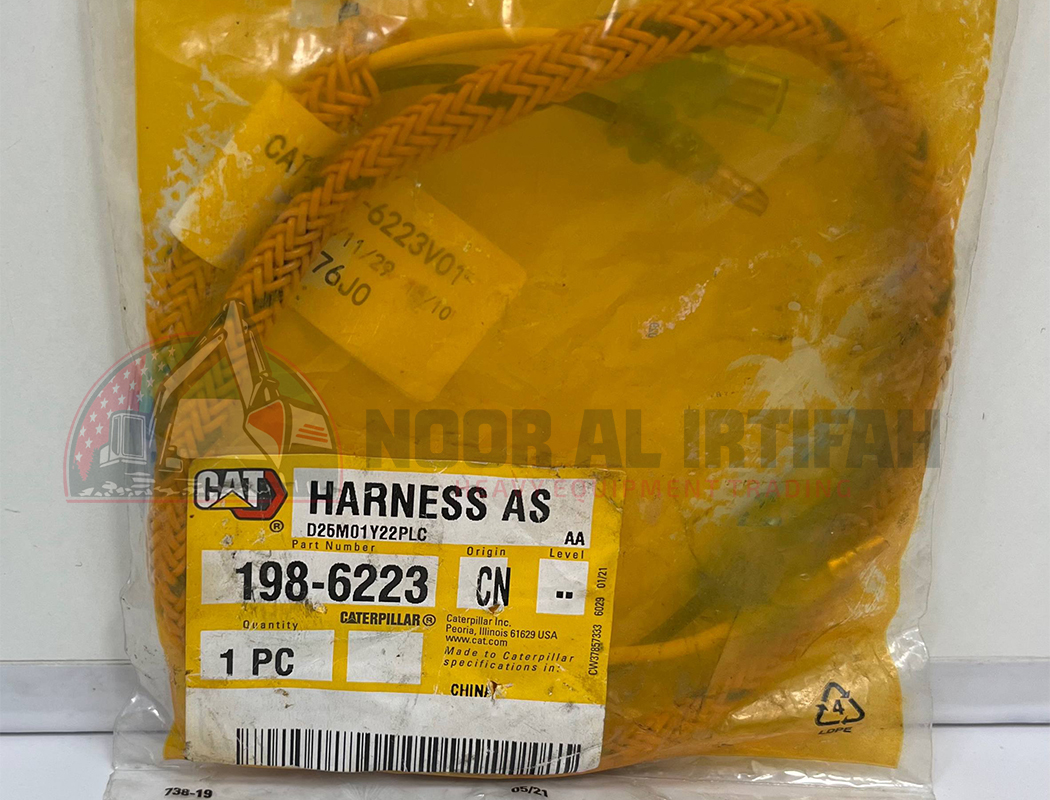

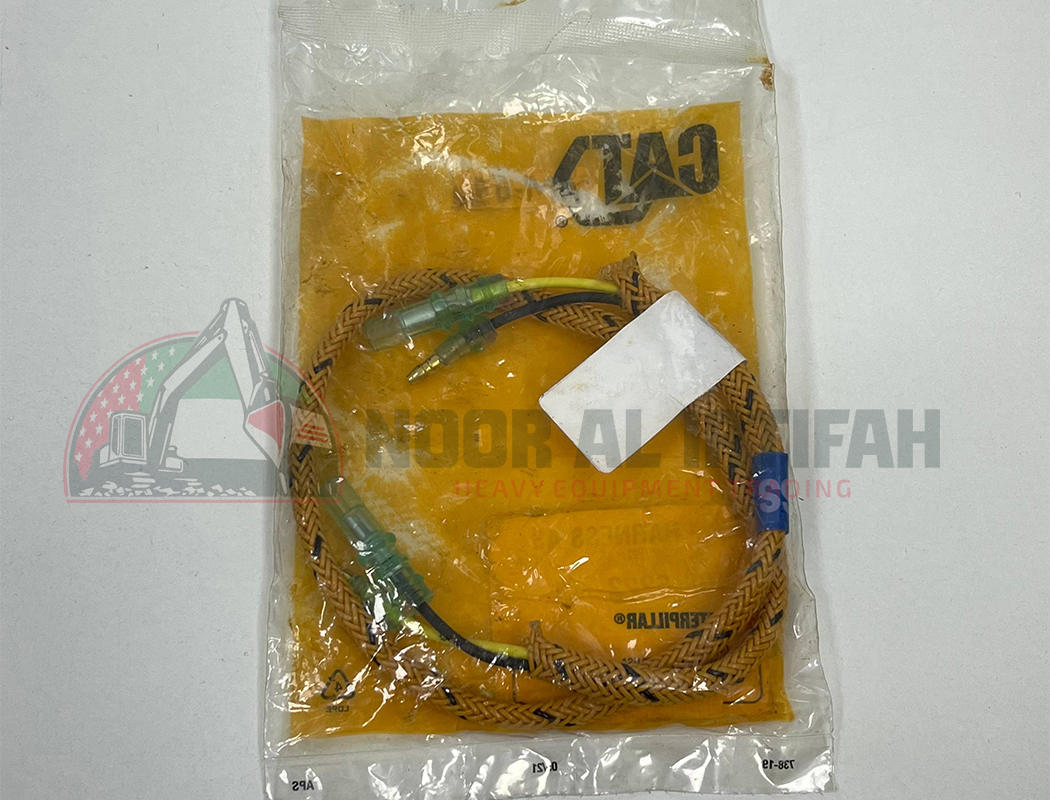

CAT 198-6223 Harness Assembly
Product Overview
The CAT 198-6223 Harness Assembly is a genuine Caterpillar OEM electrical wiring harness designed to provide reliable electrical power and signal transmission between machine electrical components and electronic control systems. Manufactured to Caterpillar’s exact OEM specifications, this harness assembly helps ensure dependable communication between sensors, switches, Electronic Control Modules (ECMs), actuators, and other electrical devices, supporting efficient machine operation and diagnostic capabilities.
Constructed with high-quality insulated wiring, protective sheathing, and OEM-grade sealed connectors, the 198-6223 Harness Assembly is engineered to withstand vibration, abrasion, moisture, dust, and harsh operating conditions commonly encountered in construction and mining environments. As a direct OEM replacement, it maintains factory electrical integrity while simplifying installation and maintenance.
Key Features
- Genuine Caterpillar OEM Harness Assembly
- Part Number: 198-6223
- Provides reliable electrical power and signal transmission
- Factory-engineered to Caterpillar OEM specifications
- High-quality insulated wiring for long service life
- OEM sealed connectors for secure electrical connections
- Protective sheathing resists abrasion, vibration, moisture, and contaminants
- Supports communication between sensors, ECMs, and electrical components
- Designed for demanding construction and mining applications
- Direct OEM replacement for simplified installation
- Maintains factory electrical system reliability and performance
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 198-6223 |
| Product Type | Harness Assembly |
| Component Type | Electrical Wiring Harness |
| Function | Electrical power and signal transmission |
| Connector Type | OEM Caterpillar sealed connectors |
| Protective Covering | Heavy-duty insulated wiring |
| Application | Machine electrical and electronic systems |
| Installation | Direct OEM replacement |
| Brand | Caterpillar (CAT) |
Note: Caterpillar has not published detailed dimensional or electrical specifications for this harness assembly.
Application Information
The CAT 198-6223 Harness Assembly is designed to route electrical power and communication signals throughout the machine while protecting the wiring from environmental exposure and mechanical wear. It helps maintain reliable operation of machine electrical systems by providing secure, low-resistance electrical connections between critical electronic components.
The harness supports:
- Electronic Control Module (ECM) communication
- Sensor and switch connectivity
- Electrical power distribution
- Machine monitoring and diagnostics
- Reliable signal transmission
- Protected wiring routes for long-term durability
Its robust construction ensures dependable performance in heavy-duty operating environments exposed to vibration, dust, moisture, and temperature fluctuations.
Compatible Caterpillar Equipment
The CAT 198-6223 Harness Assembly is compatible with the following Caterpillar equipment:
Front Shovel
- 385C
Excavators
- 312C
- 312C L
- 312D
- 315C
- 315D L
- 318C
- 319C
- 319D
- 320C
- 322C
- 323D L
- 323D LN
- 323D S
- 324D
- 324D L
- 324D LN
- 325C
- 325D
- 325D L
- 329D L
- 329D LN
- 330C
- 330C L
- 330C LN
- 330D L
- 330D LN
- 330D MH
- 336D
- 336D L
- 336D LN
- 345C
- 345C L
- 345D
- 365C
- 365C L
- 365C L MH
- 374D L
- 385C L
- 385C L MH
- 385C FS
- 390D
- 390D L
Mobile Hydraulic Power Units
- 323D LN
- 325D
- 325D L
- 330C
- 330D
- 336D
- 336D L
- 345C
- 345C L
- 345D
- 365C L
- 385C
- 385C L
Compatibility should always be verified using the machine Product Identification Number (PIN) or serial number before ordering, as harness configurations may vary by machine arrangement and production configuration.
Additional Compatibility Information
The 198-6223 Harness Assembly is a configuration-specific electrical component. Before installation, verify:
- Machine model
- Product Identification Number (PIN)
- Machine serial number
- Existing harness part number
- Electrical system configuration
- Connector type and pin configuration
- Applicable machine arrangement
- Electronic control system compatibility
Any modifications to the original equipment configuration may affect compatibility. Confirmation through Caterpillar parts information or an authorized Cat dealer is recommended.
Benefits
Installing a genuine CAT 198-6223 Harness Assembly helps:
- Ensure reliable electrical power and signal transmission
- Maintain stable communication between machine electrical components
- Improve machine reliability and operational efficiency
- Reduce downtime caused by wiring or connector failures
- Protect sensitive electronic control systems
- Simplify maintenance with an OEM direct-fit replacement
- Extend the service life of the machine’s electrical system
- Deliver OEM-quality fit, durability, and long-lasting electrical performance
- Brand New / Genuine Surplus Caterpillar Part
- Professionally inspected before dispatch
- Ready for immediate shipment (subject to stock availability)
