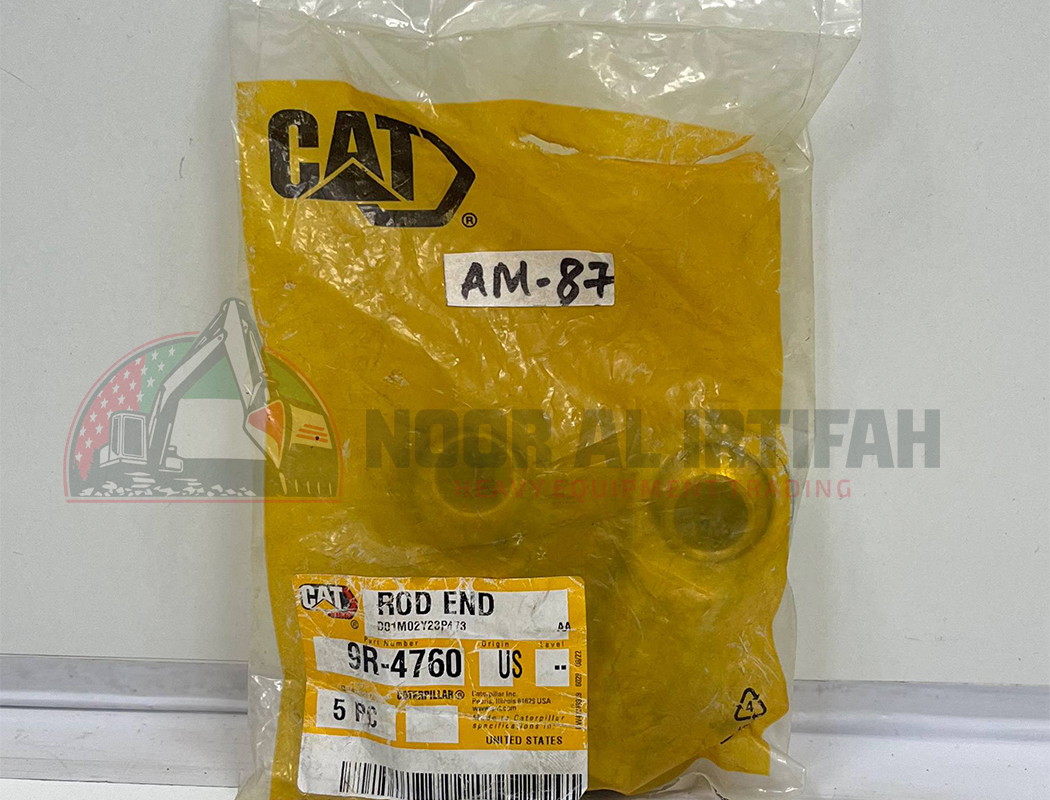

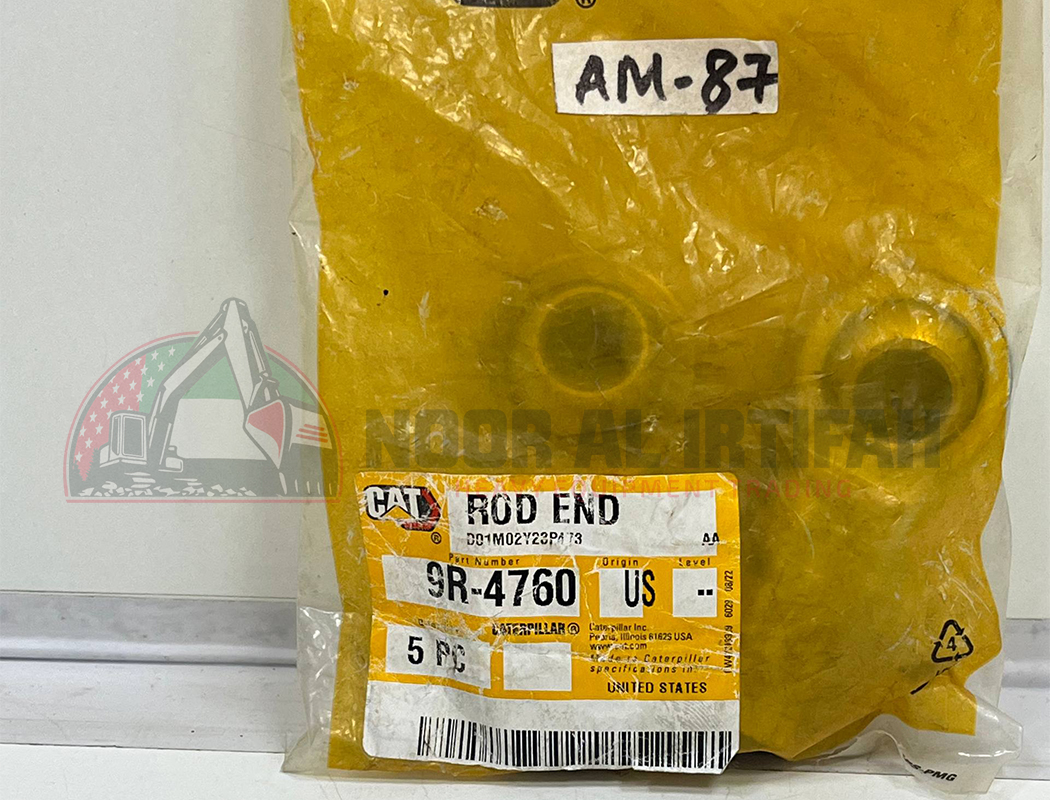

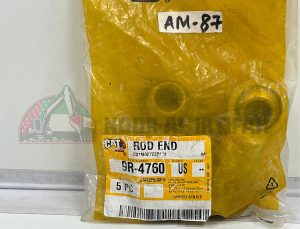

CAT 9R-4760 Rod End – Spherical
Product Overview
The CAT 9R-4760 Rod End – Spherical is a Genuine Caterpillar OEM spherical rod end designed to provide a durable mechanical articulating joint for rod and linkage assemblies. Manufactured to Caterpillar’s exact OEM specifications, this component accommodates oscillating movement during slow rotational motion while compensating for angular misalignment between connected components, ensuring smooth and reliable operation in heavy-duty applications.
The 9R-4760 Spherical Rod End features an M16 threaded shank, 27 mm thread length, 16° pivot angle, and a high-strength steel construction. Its eye-shaped housing incorporates a spherical bearing that reduces friction, supports high static and alternating loads, and provides long service life with minimal maintenance. As a Genuine Caterpillar OEM replacement part, it restores factory linkage performance while ensuring OEM fit, durability, and long-term reliability.
Key Features
- Genuine Caterpillar OEM Spherical Rod End
- Part Number: 9R-4760
- Metric Size 16 spherical rod end
- Mechanical articulating joint for rod and linkage assemblies
- Accommodates oscillation during slow rotational movement
- Compensates for angular misalignment between connected components
- M16 thread size
- 27 mm thread length
- 16° pivot angle
- High-strength steel construction
- Large load capacity
- Easy mounting and dismounting
- Suitable for heavy static, alternating, and shock loads
- Direct OEM replacement manufactured to Caterpillar specifications
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 9R-4760 |
| Product Type | Spherical Rod End |
| Component Type | Mechanical Articulating Joint |
| Function | Provides articulation and accommodates misalignment in linkage assemblies |
| Thread Size | M16 |
| Thread Length | 27 mm (1.06 in) |
| Pivot Angle | 16° |
| Material | Steel |
| Length to Pin Hole (A) | 63 mm (2.519 in) |
| Rod End Diameter (B) | 42 mm (1.496 in) |
| Height (C) | 21 mm (0.826 in) |
| Installation | Direct OEM replacement |
| Brand | Caterpillar (CAT) |
Note: Caterpillar has not published additional bearing clearance, load rating, lubrication, or dimensional tolerance specifications for the CAT 9R-4760 Rod End – Spherical beyond the information listed above.
Application Information
The CAT 9R-4760 Rod End – Spherical is used in Caterpillar rod and linkage assemblies and control groups where strength, flexibility, and controlled articulation are essential. The spherical bearing allows smooth oscillating movement while compensating for minor shaft misalignment, reducing friction and wear between mating components. It is specifically designed for low- to medium-speed, high-load applications with low to moderate side thrust.
Manufactured to Caterpillar OEM standards, the rod end is designed to withstand:
- Heavy static loads
- Alternating loads
- Shock loads
- Vibration
- Harsh operating environments
These characteristics help maintain reliable linkage performance and extend the service life of connected mechanical components.
Compatible Caterpillar Equipment
The CAT 9R-4760 Rod End – Spherical is compatible with a wide range of Caterpillar equipment, including:
Articulated Trucks
- 725
- 730
- 735
- 740
Ejector Trucks
- 740
Off-Highway Trucks
- 794 AC
- 796 AC
- 798 AC
Backhoe Loaders
- 416
- 416B
- 426
- 426B
- 428
- 428B
- 436
- 436B
- 438
- 438B
- 446
Reclaimer Mixers
- RM-300
- RM-400
- RM-500
- RM-500B
Road Reclaimers
- RM400
- RM500
- RM500B
Compatibility should always be verified using the machine’s:
- Product Identification Number (PIN)
- Serial Number
- Arrangement Number
- Existing rod end part number
Verification through Caterpillar Parts information or an authorized Cat dealer is recommended before ordering.
Additional Compatibility Information
The 9R-4760 Rod End – Spherical is a configuration-specific linkage component. Before installation, verify:
- Machine model
- Product Identification Number (PIN)
- Machine serial number
- Existing rod end part number
- Linkage or control group configuration
- Thread size and thread direction
- Mounting dimensions
- Equipment arrangement number
Any modifications to the original equipment configuration may affect compatibility. Confirmation through Caterpillar Parts information or an authorized Cat dealer is recommended before installation.
Benefits
Installing a genuine CAT 9R-4760 Rod End – Spherical helps:
- Restore smooth articulation in linkage and control assemblies
- Accommodate angular misalignment between connected components
- Reduce friction and wear on mating parts
- Support reliable operation under heavy static, alternating, and shock loads
- Minimize downtime caused by worn or damaged rod ends
- Simplify maintenance with a direct OEM replacement
- Preserve factory linkage and control system performance
- Deliver OEM-quality fit, durability, and long-lasting reliability in demanding operating environments.
- Brand New / Genuine Surplus Caterpillar Part
- Professionally inspected before dispatch
- Ready for immediate shipment (subject to stock availability)
