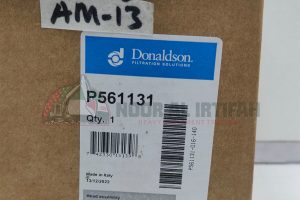

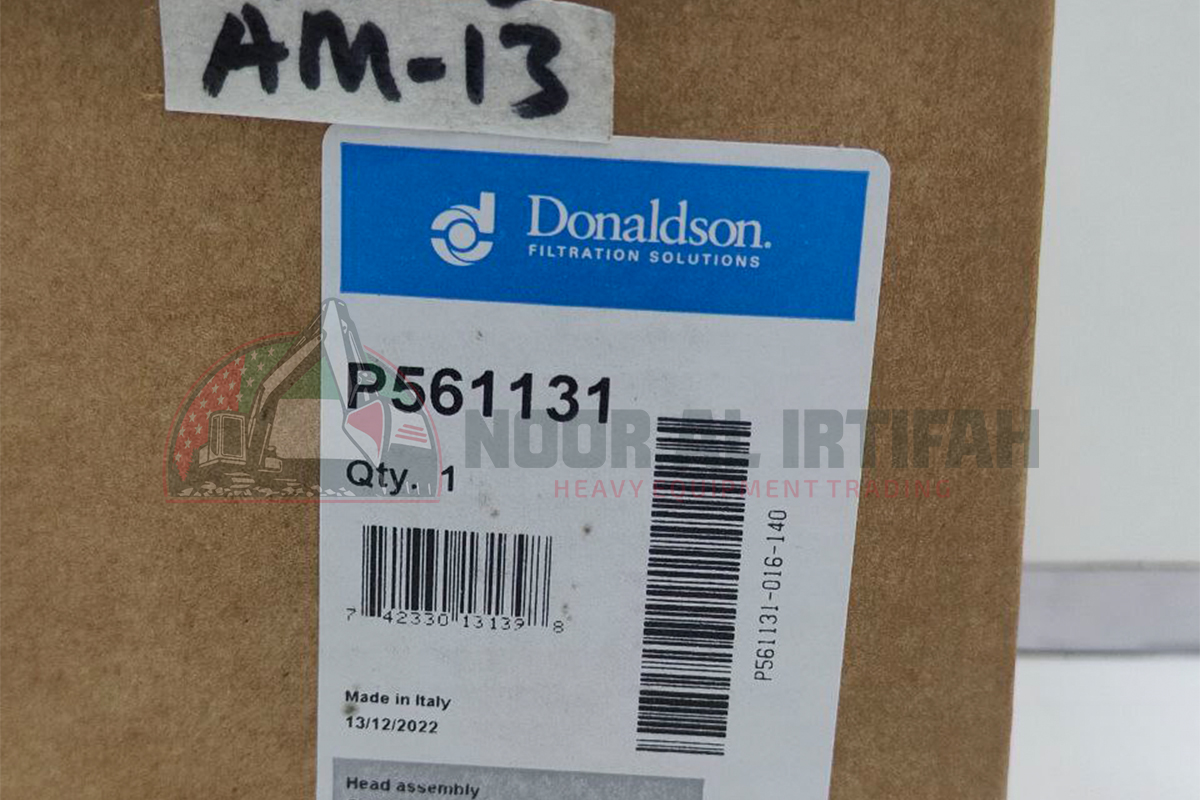

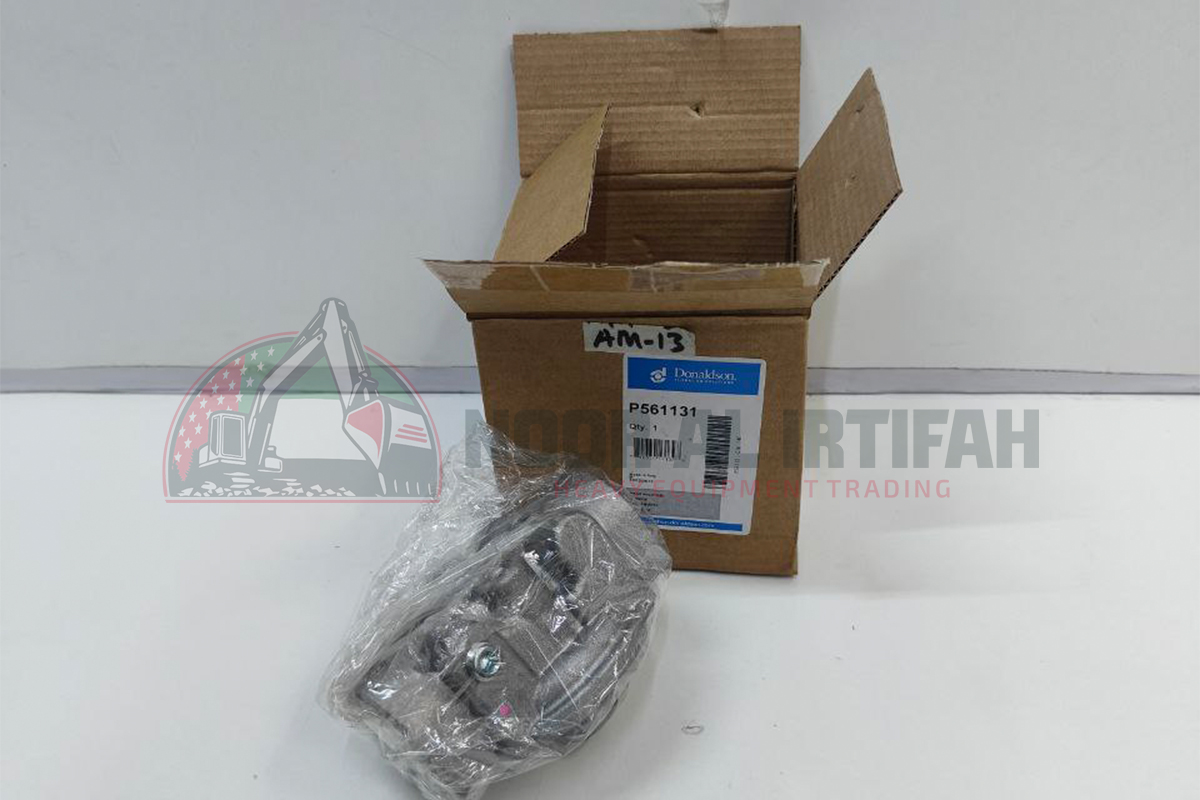

Donaldson P561131 Hydraulic Head Assembly

Product Overview

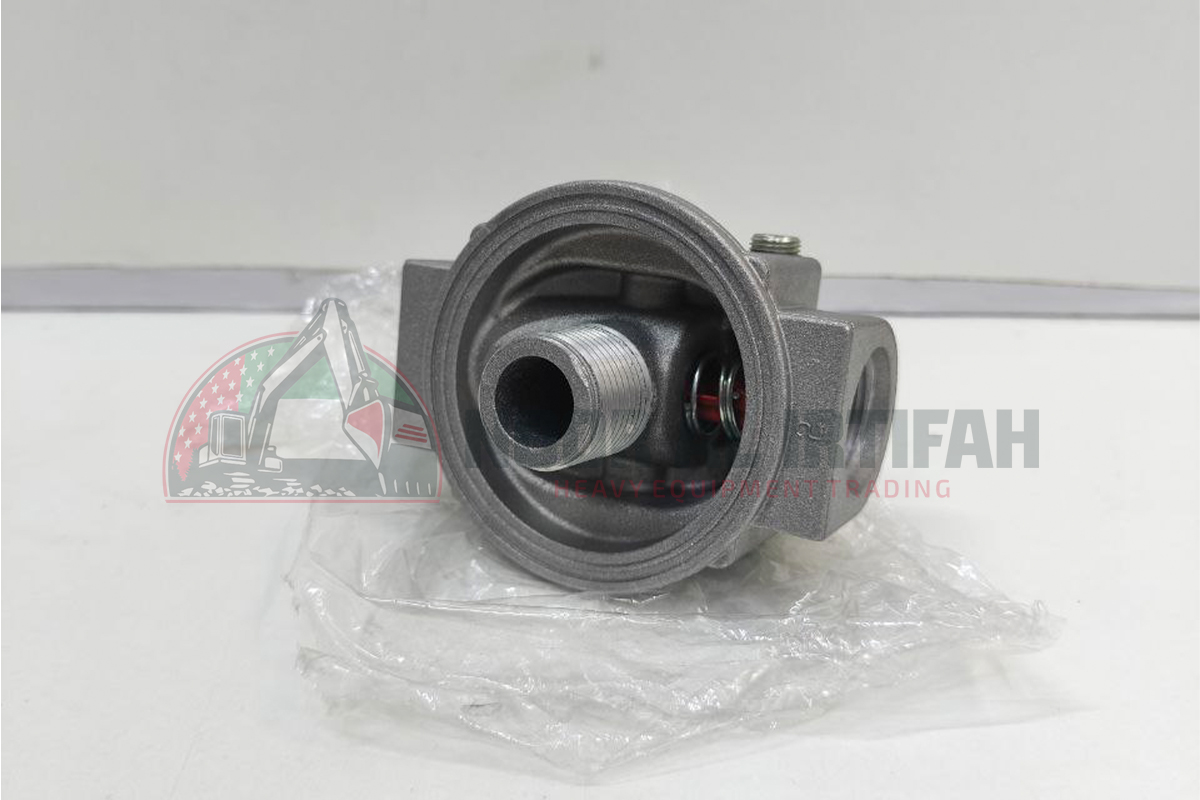

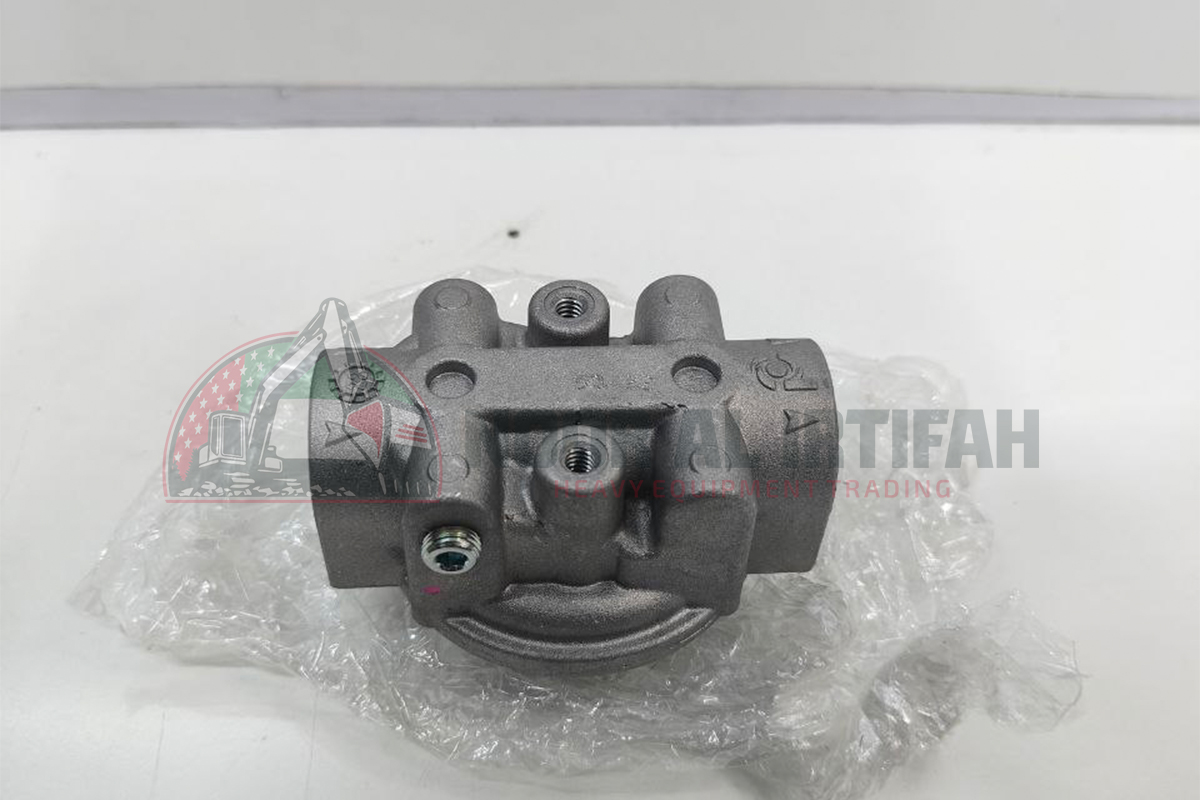

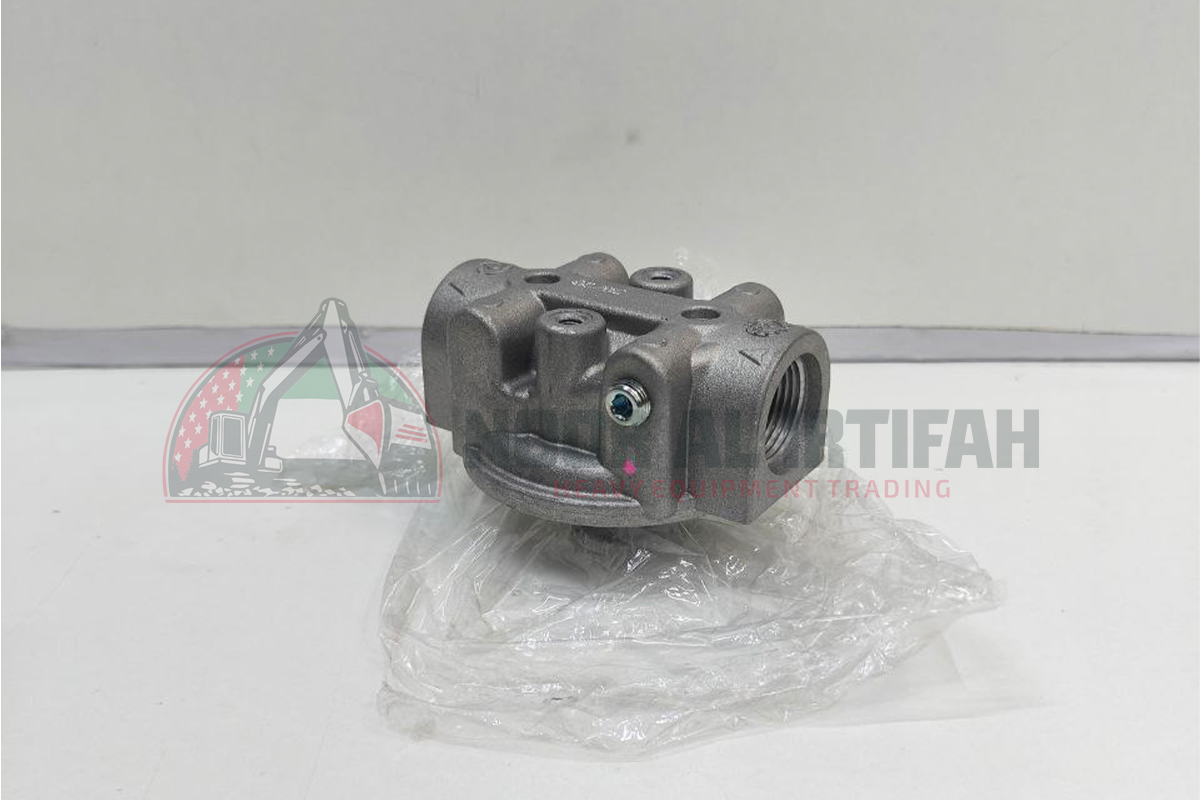

The Donaldson P561131 Hydraulic Head Assembly is a genuine Donaldson filter head designed for use with SP15/25 Series spin-on hydraulic filters. It provides a secure mounting point for the filter while directing hydraulic fluid through the filtration system to protect pumps, valves, cylinders, and other critical hydraulic components.

Engineered for low-pressure hydraulic applications, the P561131 features 3/4-14 NPT inlet and outlet ports, an integrated 25 psi (1.7 bar) bypass valve, and 1-12 UN filter mounting threads. Its durable construction and compact design make it suitable for a wide range of industrial, mobile equipment, agricultural, and construction hydraulic systems.

Key Features

• Genuine Donaldson hydraulic filter head assembly
• Designed for Donaldson SP15/25 Series spin-on hydraulic filters
• 3/4-14 NPT inlet and outlet ports
• Integrated bypass valve set at 25 psi (1.7 bar)
• 1-12 UN filter-to-head thread
• Inline mounting configuration
• Supports efficient low-pressure hydraulic filtration
• Heavy-duty construction for long service life
• Helps protect hydraulic system components from contamination
• Direct replacement for compatible hydraulic filtration assemblies

Technical Specifications

Compatible Filter Elements

The Donaldson P561131 head assembly is designed for use with Donaldson SP15/25 Series spin-on hydraulic filters, including selected models such as:

• P564967
• P564357
• P560693
• P179089
• P560694
• P551551
• P565059
• P551553
• P565060
• P550274
• P565062

Filter selection should be based on the required micron rating and the hydraulic system specifications.

Typical Applications

The Donaldson P561131 hydraulic head assembly is commonly used in:

• Construction equipment
• Agricultural machinery
• Industrial hydraulic power units
• Material handling equipment
• Mobile hydraulic systems
• Forestry equipment
• Mining equipment
• Manufacturing machinery
• Hydraulic return-line filtration systems

Benefits

Installing a genuine Donaldson P561131 Hydraulic Head Assembly helps:

• Ensure reliable hydraulic filter installation
• Protect pumps, valves, and actuators from contamination
• Maintain proper hydraulic system flow
• Reduce equipment downtime and maintenance costs
• Extend hydraulic component service life
• Support consistent hydraulic system performance
• Provide dependable OEM-quality fit and durability
